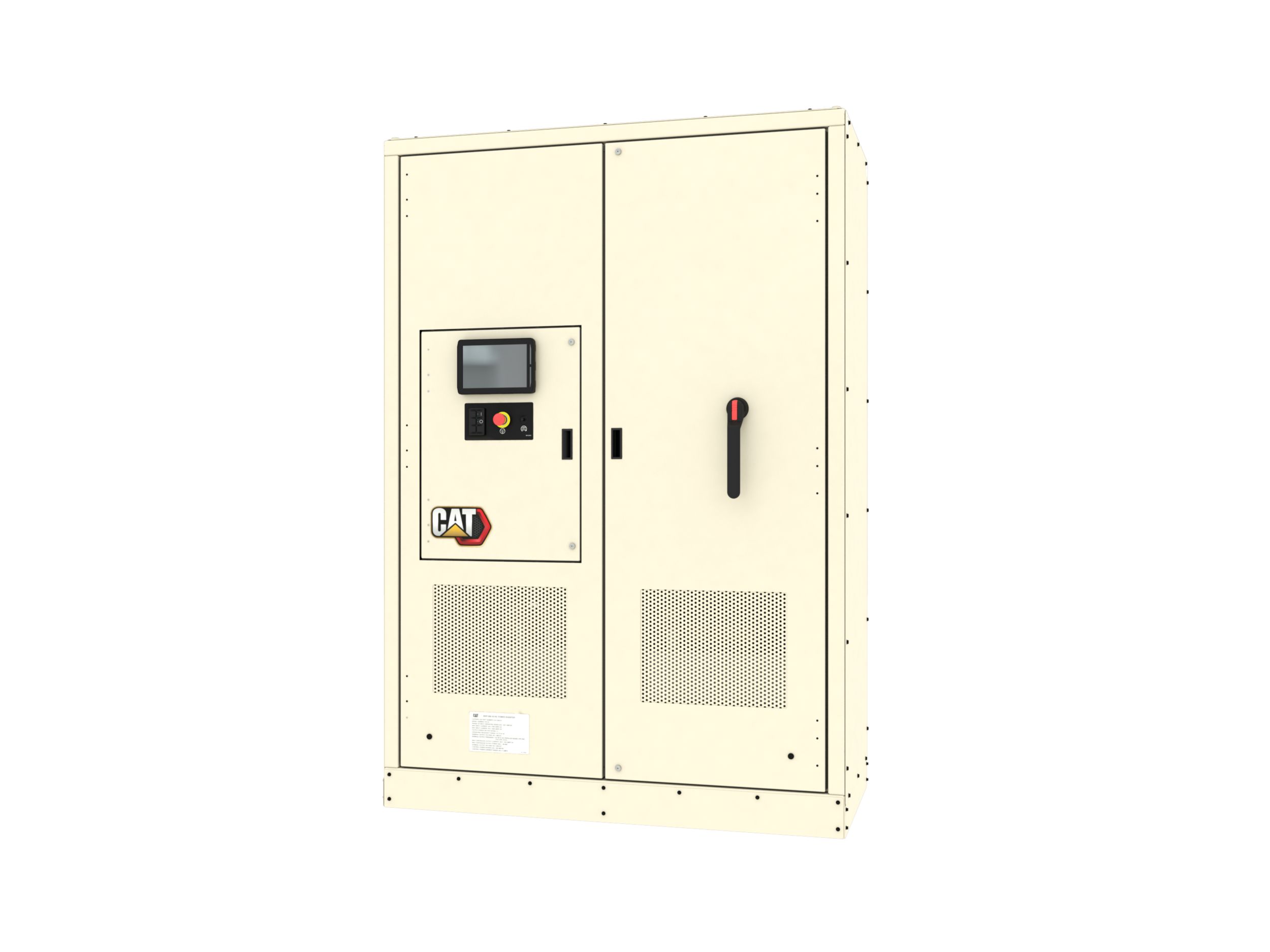

Cat Bi-Directional Power Inverter (BDP)

• Built-in controls for the charging and discharging of the energy storage equipment.
• Static VAR compensator.
• Four-quadrant output power factor control.
• Automatic anti-islanding to meet UL 1741 and synchronization back to grid.
• Parallel ready plug-and-play paralleling with other power sources.

• Ancillary services to grid (voltage/power factor, frequency support)

• Multi-mode operation
  • Grid forming
  • Grid firming
  • Grid following
  • Seamless mode transfer
  • Islanding detection
  • Autonomous mode or remote-control mode

• Patented Non-Linear droop for tight control of frequency and voltage enables high power quality on high transient loads.
• High Overload capability 1.5x.
• 2 per unit fault current capability

Integrated control of generating system which minimizes fuel consumption and emissions by:

• Enabling highly-efficient lean-burn gas gensets to operate in island mode
• And enabling the shutdown of one or more gensets for fuel savings.

UL Listed to the following standards (certification and mark pending):

• UL 1741 SB
  • IEEE1547-2018
  • IEEE1547.1-2020
  • UL1998
• CSA C22.2 No. 107.1/16
• cULus mark

Compliance (pending):

• IEC62477-1
• IEC62909
